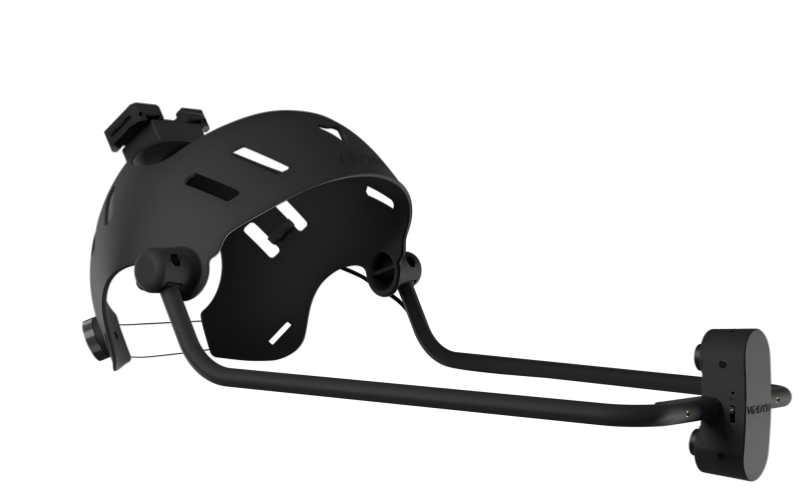

Unbox lifelike facial reconstruction with the Virdyn AH-D — a markerless facial motion capture helmet with dual 1080p embedded RGB cameras, supporting ARKit standard 52 BS bindings. At just 320g with wired and wireless connectivity, it integrates seamlessly with any full-body mocap system.
Unbox lifelike facial reconstruction with the Virdyn AH-D — Virdyn’s first markerless facial expression capture system, now upgraded to the AH-D Dual Camera Facial Capture Helmet. Equipped with dual high definition 1080p embedded RGB cameras, it requires no extra wearable electronic devices for operation.
Powered by Virdyn’s self-developed algorithm supporting ARKit standard 52 BS bindings and drivers, the AH D enables highly precise and realistic facial reconstruction. It seamlessly integrates with full-body motion capture systems, working perfectly with both inertial and optical motion capture setups making it a natural companion to systems like VDSuit Full and the YanDong markerless system.
Key Features:
- Markerless Facial Motion Capture – No dots, no paint, no markers required for accurate expression tracking.
- Built-In Double 1080p RGB Camera – No additional electronic devices required for use, simplifying setup and reducing gear overhead.
- Wired + Wireless Dual Connection – Supports both connection modes, delivering stable performance free from network interference, with a 5-meter extension cable guaranteeing real-time, high frame rate, low latency data transmission.
- 940nm Infrared Fill Light – Built in infrared illumination ensures clear, stable facial tracking even in low light or challenging lighting environments.
- ARKit Standard 52 BS Bindings – The self developed algorithm supports industry standard 52 blendshape bindings and drivers for highly precise, realistic facial reconstruction.
- Ultra Lightweight Design – At only 320g, the helmet offers lightweight comfort for long capture sessions without user fatigue.
- Multiple Free SDK Plugins – Supports Unity, Unreal Engine, Maya, and C++ SDK, allowing facial expression capture data to be directly imported into mainstream animation software and engines for efficient content production.
- Durable, Comfortable Build – Constructed from polyamide (nylon) with foam lining for a sturdy yet comfortable fit, convenient to put on and take off.
| Technical Solution | Face capture technology (markerless) |
|---|---|
| Camera | Double 1080P HD RGB camera |
| Shooting Frame Rate | 60 FPS |
| Connection Method | Wired or Wireless, USB-A 3.0 and above |
| Connection Length | 1.3 m (with 5m USB3.0 extension cable) |
| Fill Light | 940nm infrared fill light |
| Size | L 49cm × W 25cm × H 19cm |
| Weight | 320g |
| Main Materials | Polyamide (nylon) + foam lining |
| Captured Expression | BS Count 52 (ARKit standard) |
| Free Supported Plugins | Unity, Unreal Engine, Maya, C++ SDK |
Description
Unbox lifelike facial reconstruction with the Virdyn AH-D — Virdyn’s first markerless facial expression capture system, now upgraded to the AH-D Dual Camera Facial Capture Helmet. Equipped with dual high definition 1080p embedded RGB cameras, it requires no extra wearable electronic devices for operation.
Powered by Virdyn’s self-developed algorithm supporting ARKit standard 52 BS bindings and drivers, the AH D enables highly precise and realistic facial reconstruction. It seamlessly integrates with full-body motion capture systems, working perfectly with both inertial and optical motion capture setups making it a natural companion to systems like VDSuit Full and the YanDong markerless system.
Key Features:
- Markerless Facial Motion Capture – No dots, no paint, no markers required for accurate expression tracking.
- Built-In Double 1080p RGB Camera – No additional electronic devices required for use, simplifying setup and reducing gear overhead.
- Wired + Wireless Dual Connection – Supports both connection modes, delivering stable performance free from network interference, with a 5-meter extension cable guaranteeing real-time, high frame rate, low latency data transmission.
- 940nm Infrared Fill Light – Built in infrared illumination ensures clear, stable facial tracking even in low light or challenging lighting environments.
- ARKit Standard 52 BS Bindings – The self developed algorithm supports industry standard 52 blendshape bindings and drivers for highly precise, realistic facial reconstruction.
- Ultra Lightweight Design – At only 320g, the helmet offers lightweight comfort for long capture sessions without user fatigue.
- Multiple Free SDK Plugins – Supports Unity, Unreal Engine, Maya, and C++ SDK, allowing facial expression capture data to be directly imported into mainstream animation software and engines for efficient content production.
- Durable, Comfortable Build – Constructed from polyamide (nylon) with foam lining for a sturdy yet comfortable fit, convenient to put on and take off.
