DreamsCap X1 Full Performance Motion Capture Kit

Unbox complete performance capture with the DreamsCap X1 — an integrated motion capture system combining body, hand, and face tracking into a single professional workflow. DreamsCap X1 Full Performance Capture integrates 31 key nodes across the whole body, accurate to the finger joints, with one-button drive for real time reconstruction of the performer’s trajectory in three-dimensional space accurately capturing the movements of real human actors and converting them instantly into a digital model with synchronous 3D computer animation generation.

Key Features:

• 31-Node Full-Body Capture – Precision motion capture across 31 key nodes, accurate down to the finger joints, for detailed, high-fidelity human motion reconstruction.

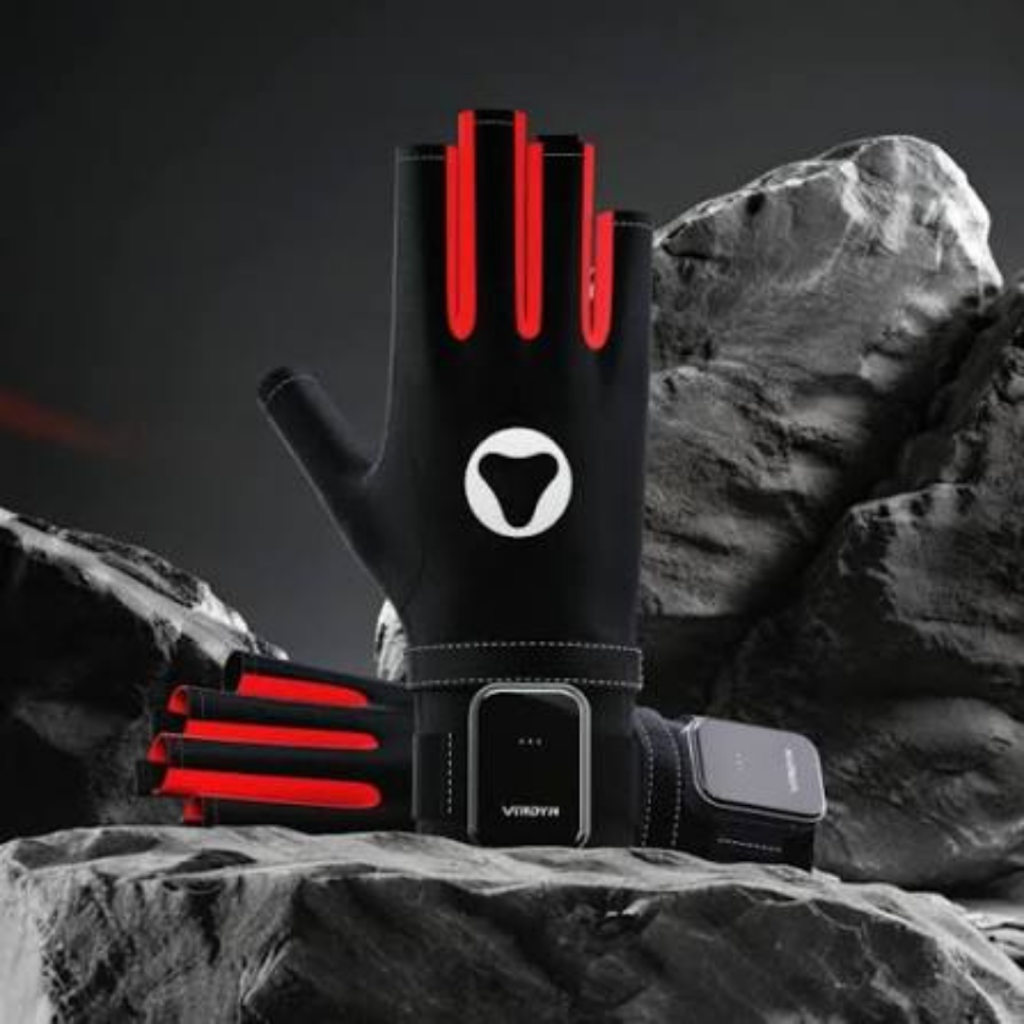

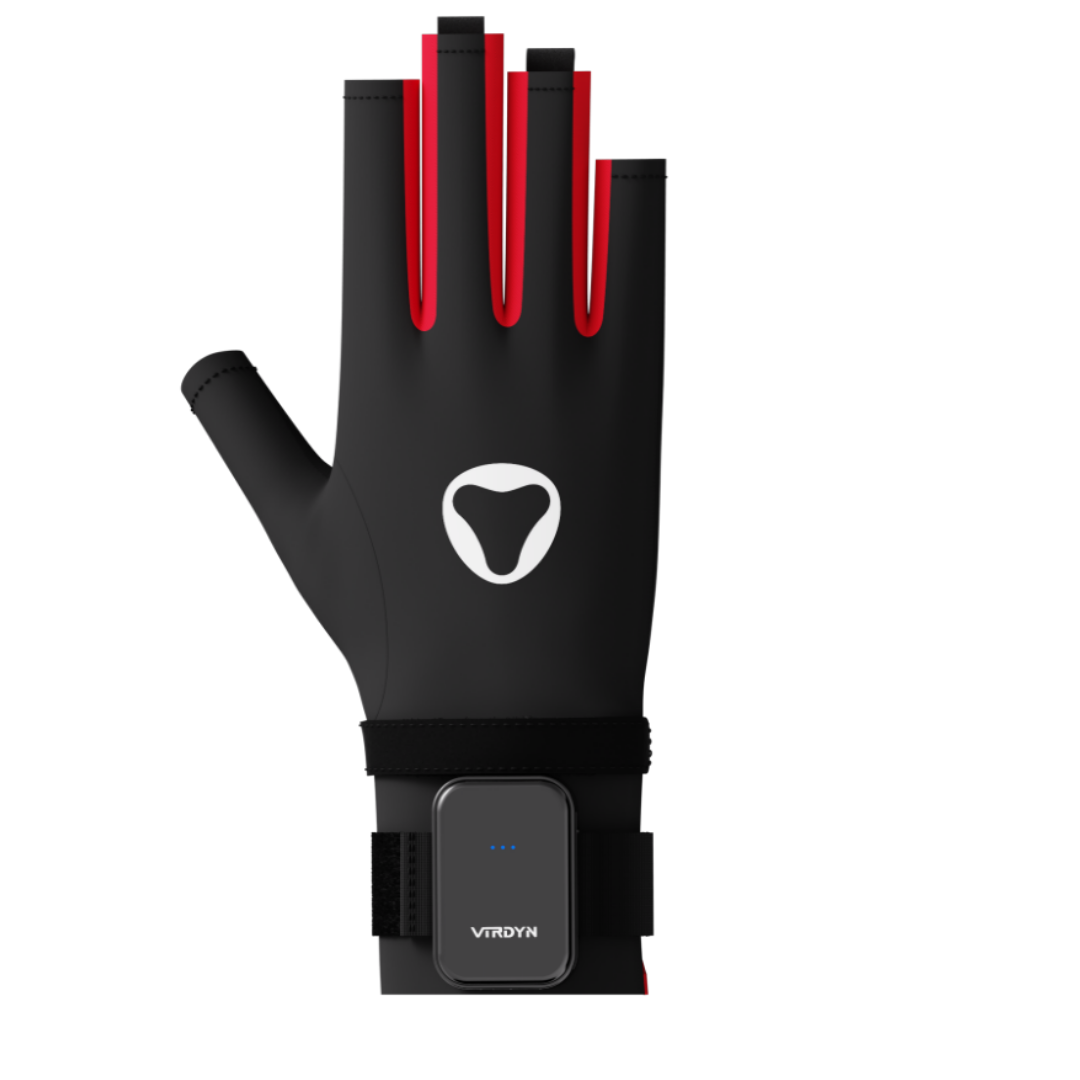

• Integrated Hand & Finger Tracking – 16 sensor nodes on the back of the hand and fingers, combined with optical positioning tracking and gesture recognition, create a seamless interface between the physical world and the digital virtual world.
• Real-Time Facial Expression Capture – An accurate facial expression capture algorithm synchronizes human facial expressions to digital characters in real time, supporting more than 52 expression data points.

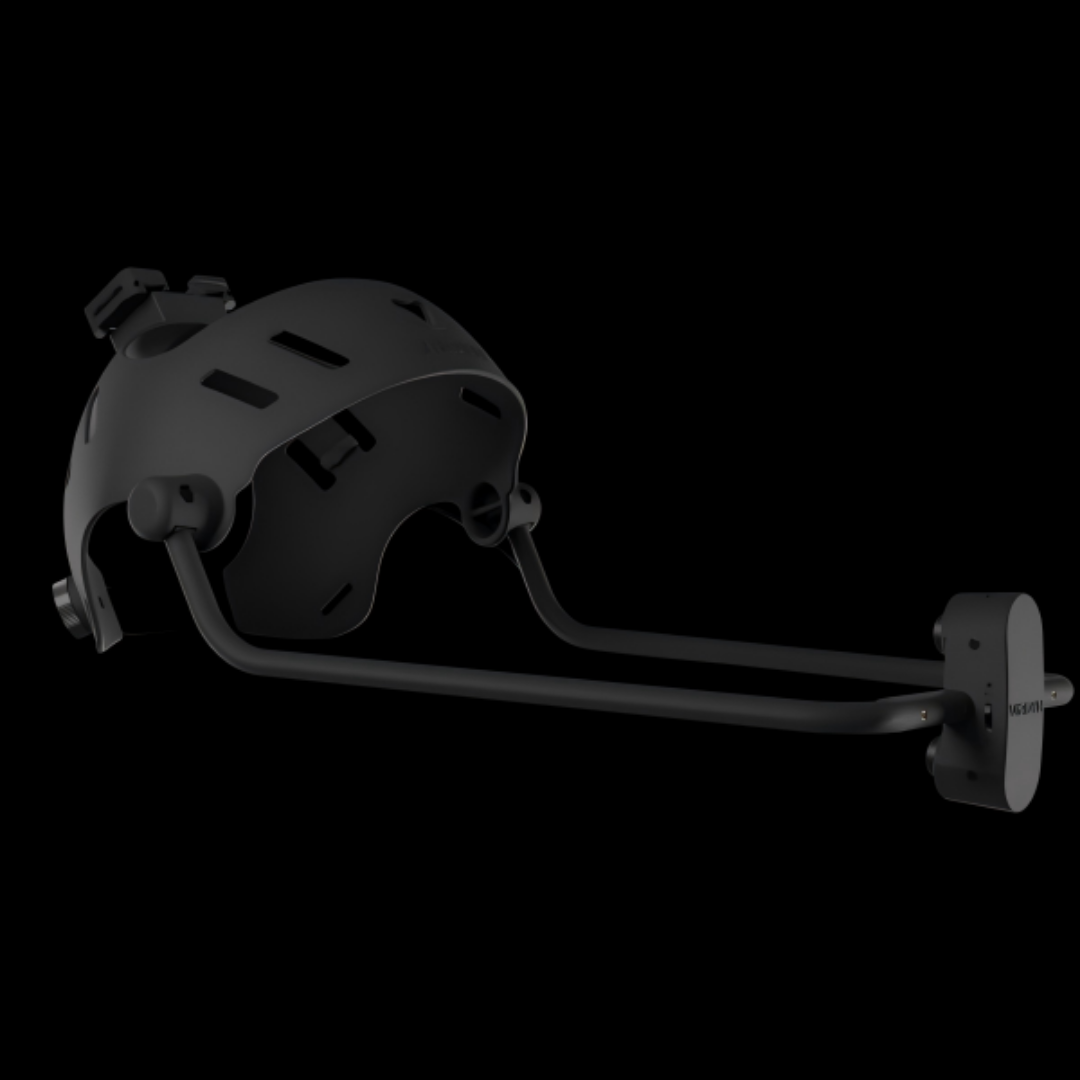

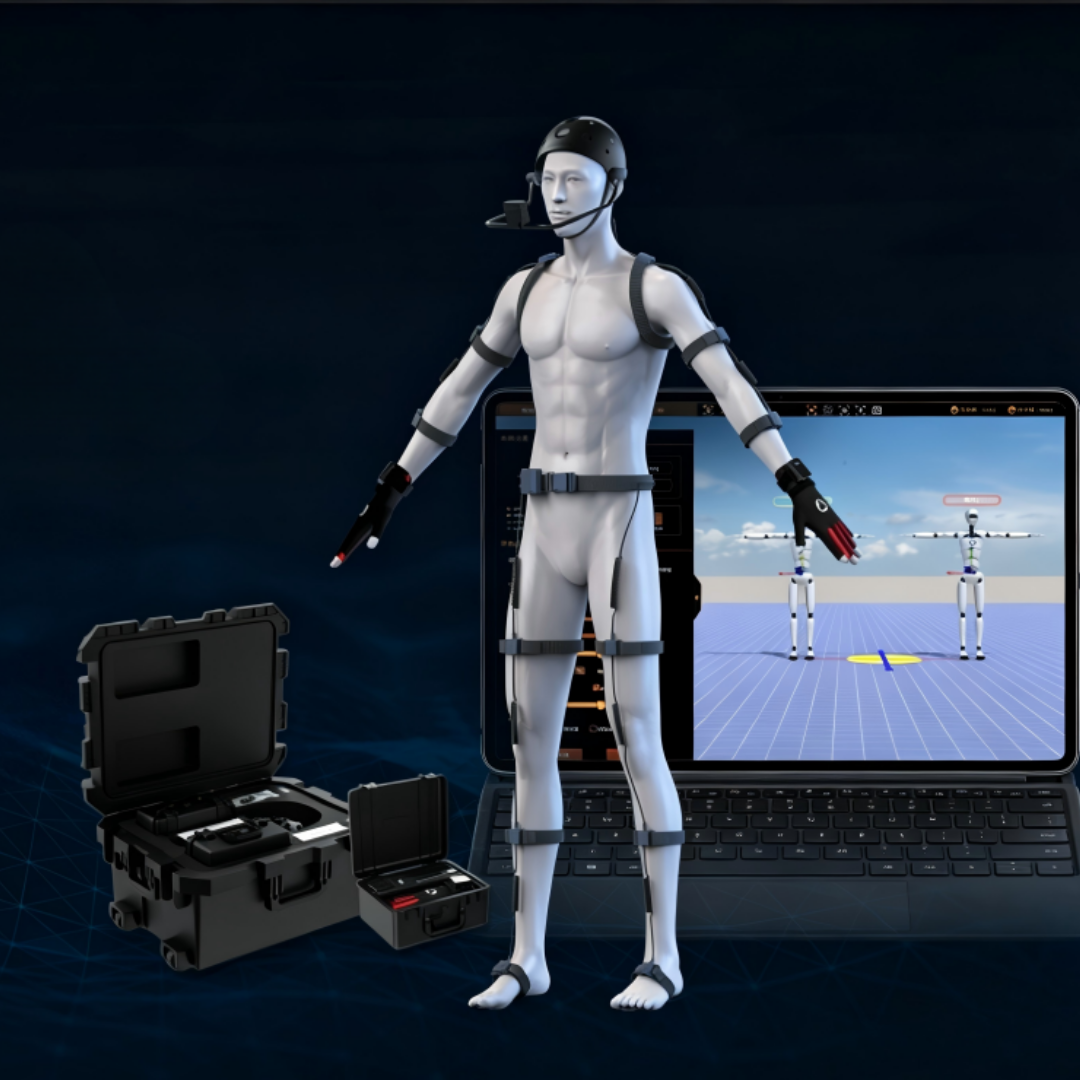

• Complete Performance Capture Kit – Includes DreamsCap Body (motion capture suit), DreamsCap Glove (hand and finger mocap gloves), DreamsCap Face (camera-based face capture helmet), and DreamsCap Studio (professional motion capture software system).
• High-Speed, Low-Latency Wireless Transmission – Adaptive frequency hopping 2.4 GHz wireless connectivity delivers data latency under 16ms across body and hand components.
• Extended Battery Endurance – Both the body suit and gloves deliver 8+ hours of continuous operation on a single charge.
• Advanced Sensor Fusion Algorithm – Independently developed multi level AHRS asynchronous fusion algorithm, factory calibrated using a self developed 24-plane, 9-parameter multi-sensor calibration technique.

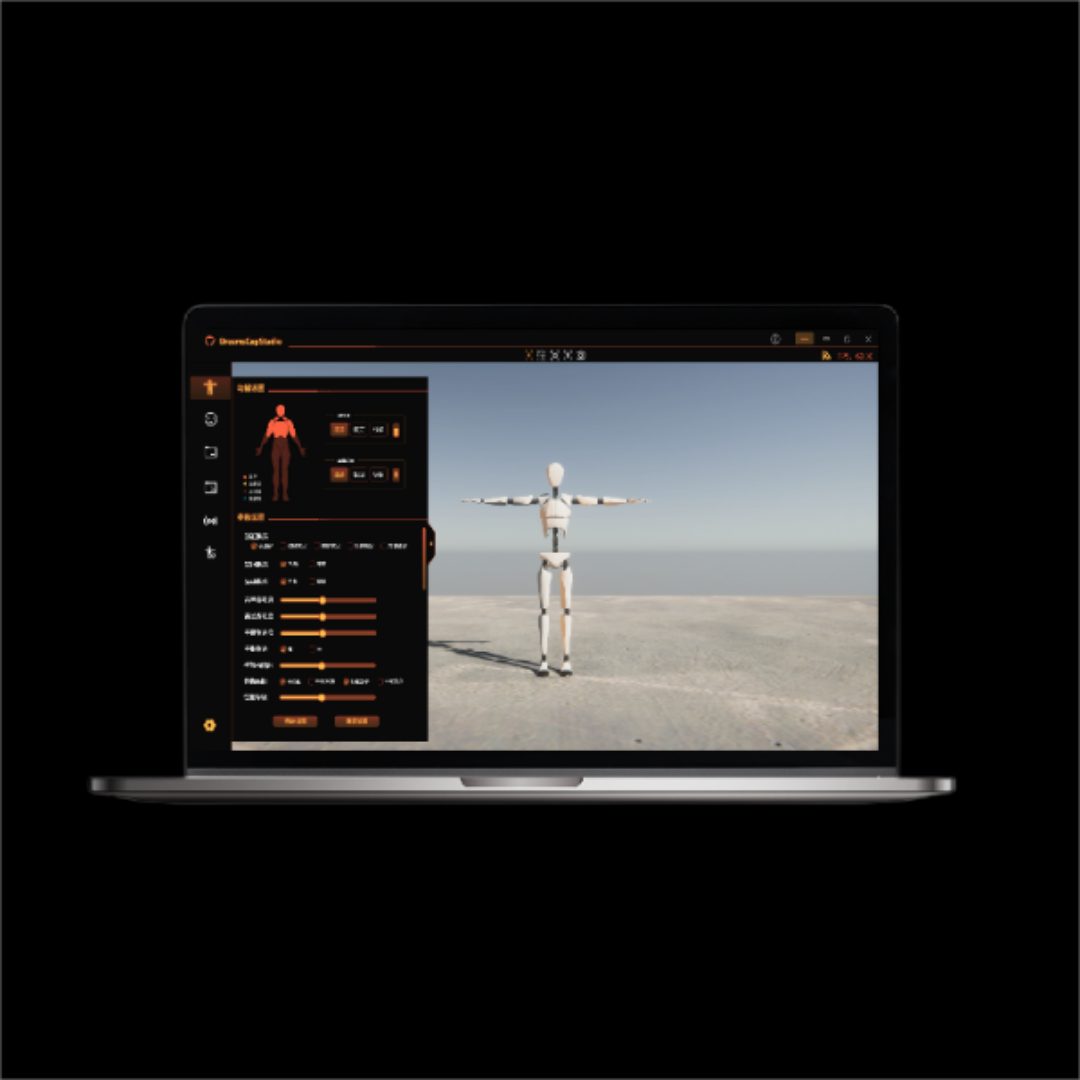

• Professional Software Suite – DreamsCap Studio supports live preview, multi window and multi player modes (up to 5 people simultaneously), gesture recognition with 10+ high precision outputs, and exports in BVH, FBX, CSV, and VAB formats.
• Secondary Development Ready – C++ SDK provided across body, glove, and face components, enabling custom integrations and third-party engine support.
• Extensive Plugin Ecosystem – Free plugins for Unity, UE4.24–5.5, iClone 7–8, Blender, Maya, and MotionBuilder, plus Steam platform support for VRChat and Warudo for VTubers.

Two Configurations Available:

• DreamsCap X1 (Body + Hands + Face) – The complete performance capture system for maximum fidelity across full body, hand, and facial motion.
• DreamsCap X1-R (Body + Hands) – A streamlined configuration for productions that require full body and hand tracking without facial capture.
