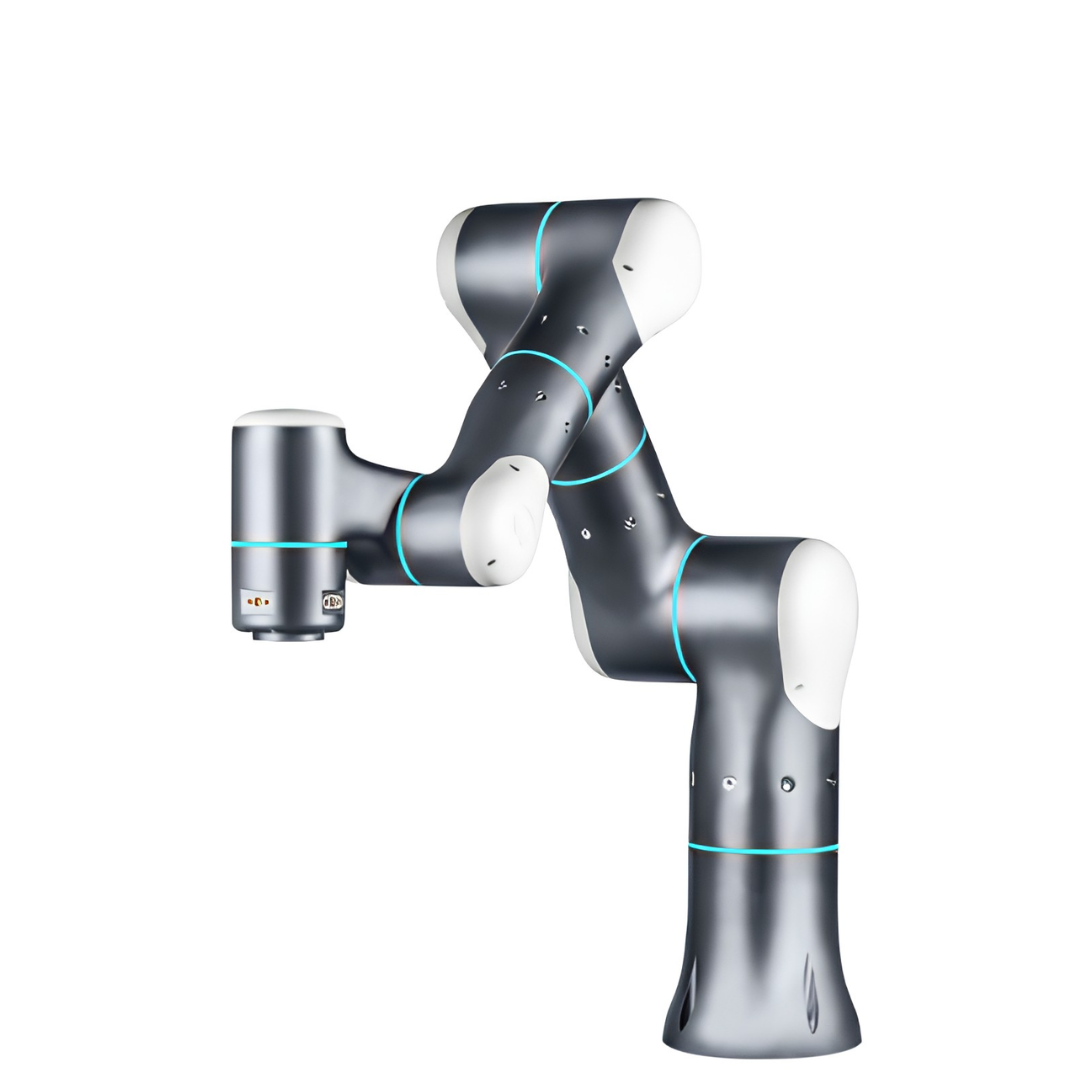

Flexiv Rizon 10, Collaborative Robot Arm
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Unbox heavy-duty adaptive automation with the Flexiv Rizon 10 — a 7DOF collaborative robot arm delivering 10 kg payload capacity, 941 mm reach, and advanced force control. With IP65 protection and up to 350 N maximum TCP force, it’s engineered for demanding tasks that require both strength and precision.
Unbox heavy-duty adaptive automation with the Flexiv Rizon 10 — the higher-payload variant of Flexiv’s flagship collaborative robot arm platform, purpose-built for applications that demand both strength and dexterity. Combining a 10 kg payload capacity with the same advanced force control technology found across the Rizon series, this collaborative robot arm extends true adaptive automation to heavier, more demanding industrial tasks.
Key Features:
- 7 Degrees of Freedom – Inspired by the flexibility of a human arm, this collaborative robot arm’s seven degrees of freedom allow full workspace utilization, reaching around obstacles that stop conventional 6-axis robots.
- High Payload Capacity – A 10 kg payload capacity enables this collaborative robot arm to handle heavier tools, parts, and end-effectors than standard cobots in its class.
- Extended Reach – A 941 mm reach provides greater workspace coverage for larger parts and multi-station tasks.
- Advanced Force Control – An optimized force control posture is always maintained during standard operation for maximum dexterity and sensitivity, even at higher payloads.
- High Maximum TCP Force – Delivers up to 350 N of maximum TCP force, enabling this collaborative robot arm to perform demanding tasks like heavy-duty polishing, deburring, and press-fit assembly.
- Versatile Mounting & Integration – Can be mounted at any angle, used with various end-of-arm tools, and integrated with AMR/AGV platforms for mobile manipulation applications.
- Safe & Reliable – Inherently safe and fully CE & ETL certified, with IP65 protection enabling operation in harsh, dusty, or wet industrial environments.
- Rigorous Quality Control – Strict quality control measures guarantee dependability across every unit, backed by comprehensive quality assessment protocols for adaptive robots.
- User-Friendly Software – Flexiv’s intuitive task editing system enables operators to easily create and manage robotic tasks, while full secondary development support allows advanced users to build custom robotic applications quickly.
- Powered by HESPER Controller – A compact yet powerful robot controller with a minimalist industrial design, delivering precise, real-time motion and force control with multiple communication channels (Profinet, Modbus TCP/IP).
| Degrees of Freedom | 7 |
|---|---|
| Payload | 10 kg |
| Weight | 38 kg |
| Reach | 941 mm |
| Protection Rating | IP65 |
| Force Sensing Accuracy | 0.2 N |
| Pose Repeatability | ±0.05 mm |
| Maximum TCP Force | 350 N |
| Typical TCP Linear Speed | 1.0 m/s |
| Noise | <70 dB |
Description
Unbox heavy-duty adaptive automation with the Flexiv Rizon 10 — the higher-payload variant of Flexiv’s flagship collaborative robot arm platform, purpose-built for applications that demand both strength and dexterity. Combining a 10 kg payload capacity with the same advanced force control technology found across the Rizon series, this collaborative robot arm extends true adaptive automation to heavier, more demanding industrial tasks.
Key Features:
- 7 Degrees of Freedom – Inspired by the flexibility of a human arm, this collaborative robot arm’s seven degrees of freedom allow full workspace utilization, reaching around obstacles that stop conventional 6-axis robots.
- High Payload Capacity – A 10 kg payload capacity enables this collaborative robot arm to handle heavier tools, parts, and end-effectors than standard cobots in its class.
- Extended Reach – A 941 mm reach provides greater workspace coverage for larger parts and multi-station tasks.
- Advanced Force Control – An optimized force control posture is always maintained during standard operation for maximum dexterity and sensitivity, even at higher payloads.
- High Maximum TCP Force – Delivers up to 350 N of maximum TCP force, enabling this collaborative robot arm to perform demanding tasks like heavy-duty polishing, deburring, and press-fit assembly.
- Versatile Mounting & Integration – Can be mounted at any angle, used with various end-of-arm tools, and integrated with AMR/AGV platforms for mobile manipulation applications.
- Safe & Reliable – Inherently safe and fully CE & ETL certified, with IP65 protection enabling operation in harsh, dusty, or wet industrial environments.
- Rigorous Quality Control – Strict quality control measures guarantee dependability across every unit, backed by comprehensive quality assessment protocols for adaptive robots.
- User-Friendly Software – Flexiv’s intuitive task editing system enables operators to easily create and manage robotic tasks, while full secondary development support allows advanced users to build custom robotic applications quickly.
- Powered by HESPER Controller – A compact yet powerful robot controller with a minimalist industrial design, delivering precise, real-time motion and force control with multiple communication channels (Profinet, Modbus TCP/IP).
