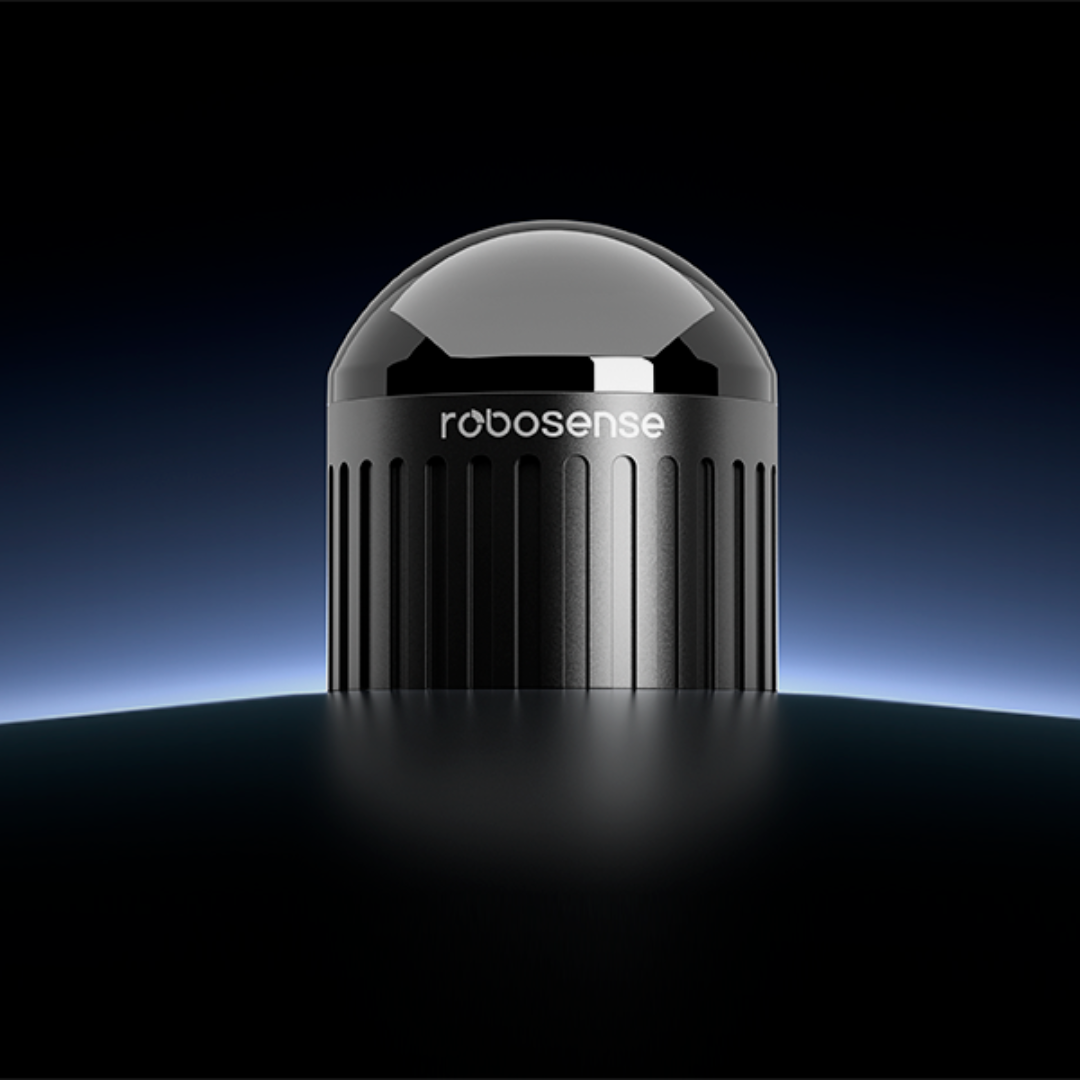

RoboSense Airy LiDAR Sensor

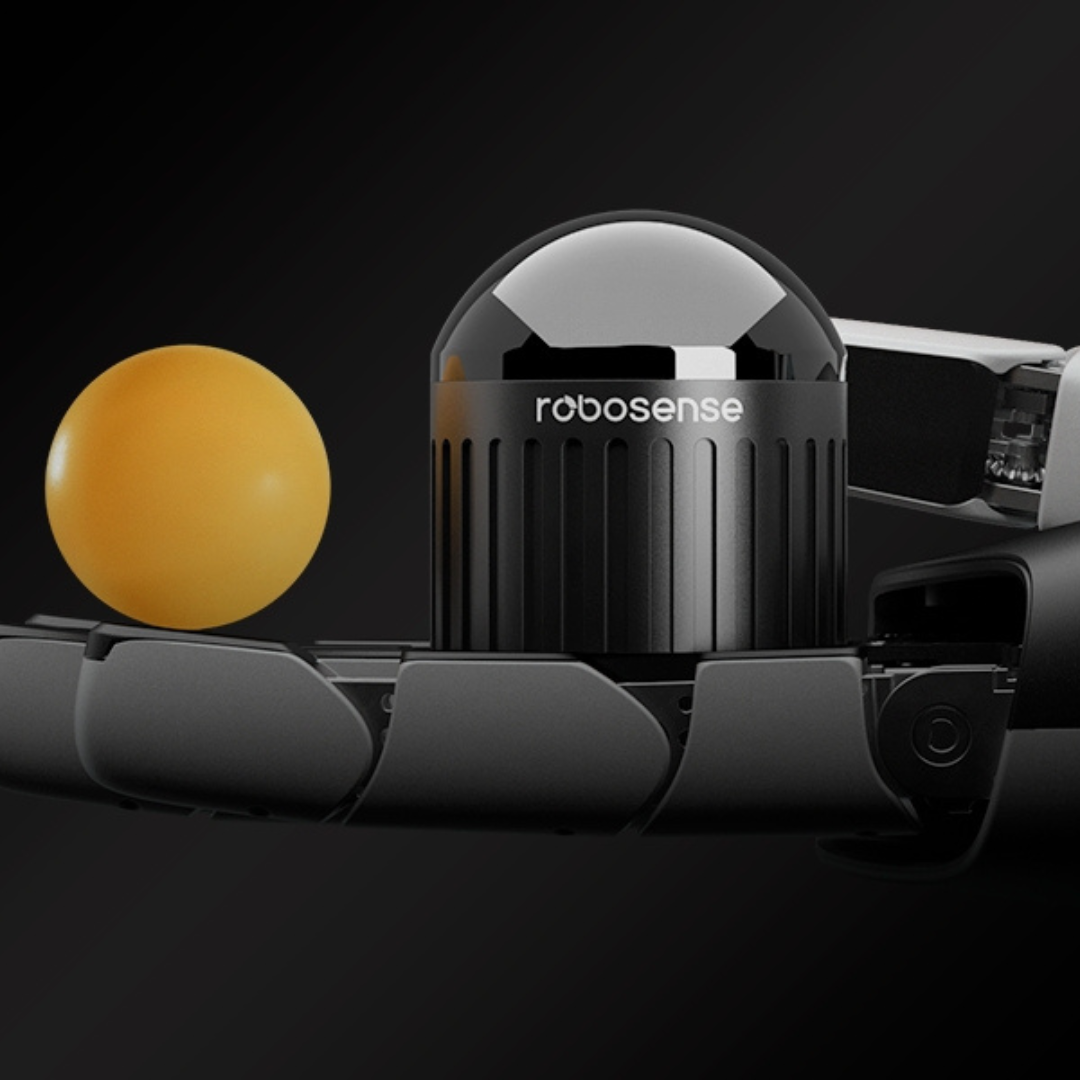

Unbox next-generation perception with the RoboSense Airy LiDAR Sensor — the first digital hemispherical LiDAR on the R platform, featuring a chip-based transceiver solution and a high-sensitivity digital detection scheme. Compact in size, comparable to a ping-pong ball, it delivers an ultra-wide hemispherical FOV with 360° horizontal and 90° vertical coverage, encompassing a 60-meter radius range. With 1.72 million points per second and 1cm@1σ range precision, this LiDAR sensor provides real-time detection of object size, contour, and distance, and its well-structured, algorithm-friendly point clouds enable exceptional performance in obstacle avoidance, mapping, and navigation tasks.

Key Features:

• Full Hemispherical Coverage – This LiDAR sensor delivers 360° horizontal × 90° vertical FOV spanning a 60-meter radius range, eliminating blind spots common in traditional LiDAR sensor designs.
• 192/96-Beam High Resolution – Delivers exceptional point density for precise detection of both static and dynamic obstacles at short and long range.
• 1.72 Million Points/Second – High-quality, well-structured point cloud output with 1cm@1σ range precision — far surpassing similar LiDAR sensors on the market.
• Integrated IMU – Built-in inertial measurement unit supports more accurate localization and motion tracking.
• Ultra-Compact & Lightweight – With a diameter of just 60mm, a height of 63mm, and a weight under 240g, this LiDAR sensor takes up minimal space, making it ideal for flexible robot design and deployment.
• Low Power Consumption – Ultra-low power consumption below 8W ensures long-term, continuous, and stable operation for robots.
• Digital Architecture – Built with next-generation VCSEL emitter chips and high-sensitivity SPAD-SOC chips, employing a digital transmission and reception architecture that streamlines signal processing, ensures no loss of echo data, and significantly reduces product size.
