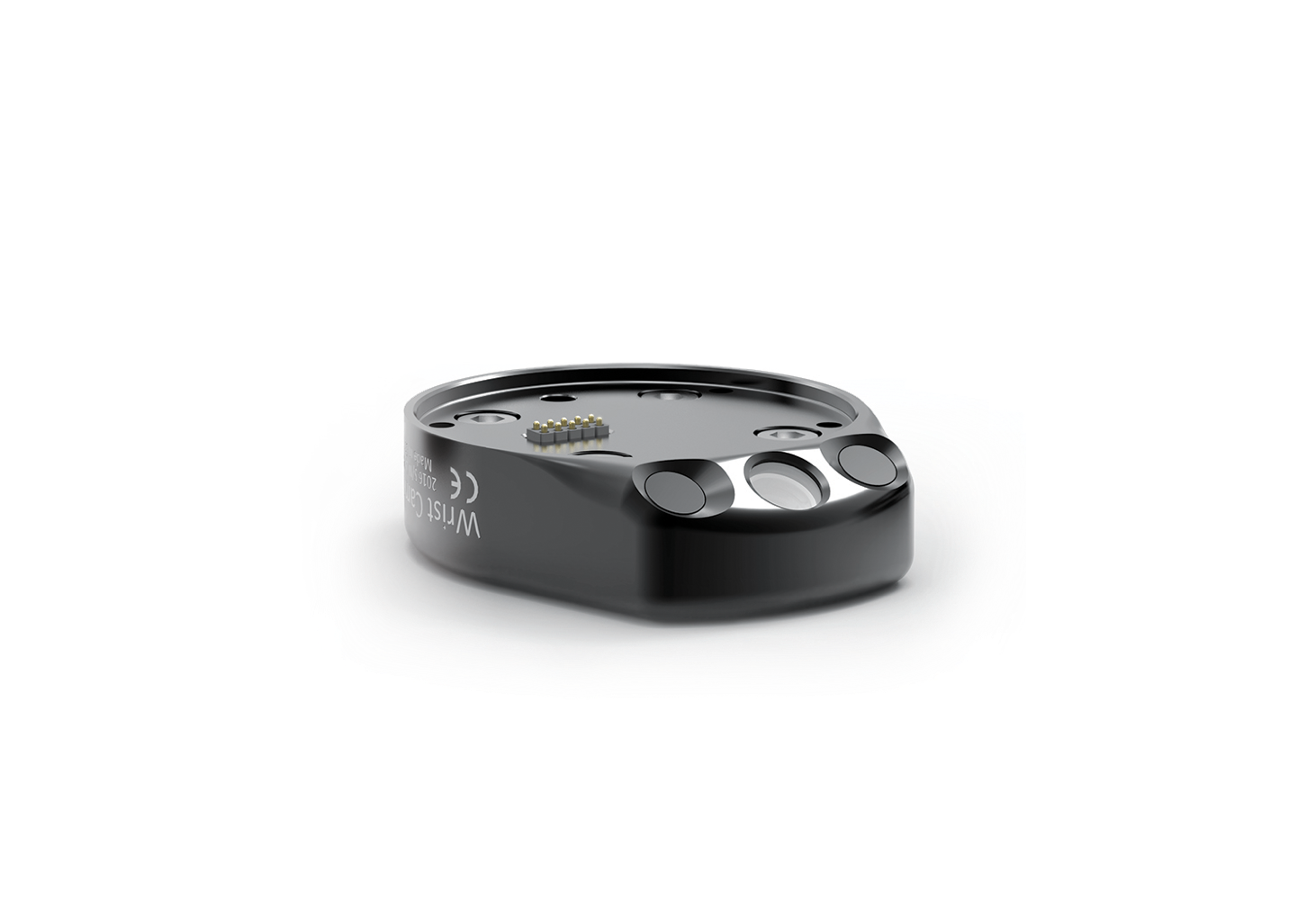

Unbox precision with the Robotiq Wrist Camera — the most compact, easy-to-use vision system built for Universal Robots. With a 5-megapixel sensor, integrated lighting, and effortless part teaching, it’s engineered for machine tending, pick & place, and precision assembly.
Unbox precision with the Robotiq Wrist Camera — one of the most compact and widely trusted vision systems in the field of collaborative robotics. The Robotiq Wrist Camera is the easiest-to-use, most compact vision system made for Universal Robots, designed to perform machine-tending, pick-and-place, and assembly tasks with precision and effortless programming.
Key Features:
- Slim, Compact Design – Weighs just 0.16 kg with dimensions of 87.5 x 75 x 22.4 mm — mounts directly on the robot wrist without extra cabling.
- 5-Megapixel Color Sensor – Delivers sharp, reliable image capture with electronic focus for consistent accuracy.
- 6-LED Integrated Lighting – Diffuse white light ensures stable performance even in variable factory lighting conditions.
- Wide Field of View Range – Adapts from a minimum 10 x 7.5 cm to a maximum 71 x 54 cm field of view, covering both small and large parts.
- Effortless Programming – Programming software runs directly on the teach pendant, with easy part teaching through three flexible methods, including CAD file import — no background in robotics or vision systems required.
- Seamless Integration – Integrates seamlessly with the Robotiq Hand-E and EPick grippers, as well as the Robotiq Force Torque Sensor FT300.
- Built-In Traceability – Adds barcode and 2D code-reading functionality to your assembly line for full part traceability.
Ideal Applications:
Machine tending, pick & place, and precision assembly — helping manufacturers locate and pick parts accurately even when fixtures shift, thanks to visual offset teaching
| Weight | 0.16 kg (0.35 lb) |
|---|---|
| Dimensions | 87.5 x 75 x 22.4 mm |
| Sensor & Optic | 5-megapixel color sensor, electronic focus |
| Minimum Field of View | 10 x 7.5 cm |
| Maximum Field of View | 71 x 54 cm |
| Min/Max Part Size | 10% to 60% of field of view |
| Focus Range | 7 mm to ∞ |
| Cobot Compatibility | Universal Robots |
Description
Unbox precision with the Robotiq Wrist Camera — one of the most compact and widely trusted vision systems in the field of collaborative robotics. The Robotiq Wrist Camera is the easiest-to-use, most compact vision system made for Universal Robots, designed to perform machine-tending, pick-and-place, and assembly tasks with precision and effortless programming.
Key Features:
- Slim, Compact Design – Weighs just 0.16 kg with dimensions of 87.5 x 75 x 22.4 mm — mounts directly on the robot wrist without extra cabling.
- 5-Megapixel Color Sensor – Delivers sharp, reliable image capture with electronic focus for consistent accuracy.
- 6-LED Integrated Lighting – Diffuse white light ensures stable performance even in variable factory lighting conditions.
- Wide Field of View Range – Adapts from a minimum 10 x 7.5 cm to a maximum 71 x 54 cm field of view, covering both small and large parts.
- Effortless Programming – Programming software runs directly on the teach pendant, with easy part teaching through three flexible methods, including CAD file import — no background in robotics or vision systems required.
- Seamless Integration – Integrates seamlessly with the Robotiq Hand-E and EPick grippers, as well as the Robotiq Force Torque Sensor FT300.
- Built-In Traceability – Adds barcode and 2D code-reading functionality to your assembly line for full part traceability.
Ideal Applications:
Machine tending, pick & place, and precision assembly — helping manufacturers locate and pick parts accurately even when fixtures shift, thanks to visual offset teaching
Product Videos
Specification
Overview
Customer Reviews
You may also like
Dobot Robots Magician E6 For Education
Unbox AI robotics education with Dobot — a complete lineup of programmable robot arms and training systems designed to make automation learning engaging, practical, and future-ready. From the beginner-friendly Magician series to the advanced DOBOT X-Trainer, Dobot equips schools and universities with hands-on tools to build real robotics and AI skills.
DOBOT VX500 Smart Camera
Unbox precise robotic vision with the DOBOT VX500 Smart Camera — a 5-megapixel camera with LED light source and Dobot's self developed 2.5D spatial compensation technology, achieving ±0.26mm positioning accuracy. Built for slanted surface grabbing, fixed position assembly, and AMMR robot transportation.
Robotiq 2F-140 Adaptive Gripper
Unbox extended reach with the Robotiq 2F-140 Gripper — part of Robotiq's flagship 2-Finger series, featuring a 140 mm stroke for handling larger objects with precision. With a patented mechanical design allowing both encompassing and pinch grips, it's built for pick & place, assembly, and machine tending.
Robotiq 2F-85 Gripper
Discover the Robotiq 2F-85 Gripper a patented adaptive gripper with an 85 mm stroke, 5 kg payload, and up to 235 N grip force. Trusted across manufacturing and robotics research, it's built for precision assembly, pick & place, and Physical AI-driven manipulation, with full ROS2 and NVIDIA Isaac Sim support.
Robotiq Hand-E C10 Gripper
Unbox concentric precision with the Robotiq Hand-E C10 — a sealed, IP67 rated adaptive gripper solution built for high mix, low volume manufacturing. With a 40 mm concentric stroke and 10 kg max payload, it delivers reliable performance for tight space assembly and rugged machine tending environments.
Robotiq Hand-E Gripper
Unbox precision with the Robotiq Hand-E Gripper — a patented adaptive gripper engineered for sealed, high precision performance in the toughest manufacturing conditions, including CNC machine tending. With a choice of 50 mm or 100 mm stroke and IP67 protection, it's built for high mix, low volume environments.

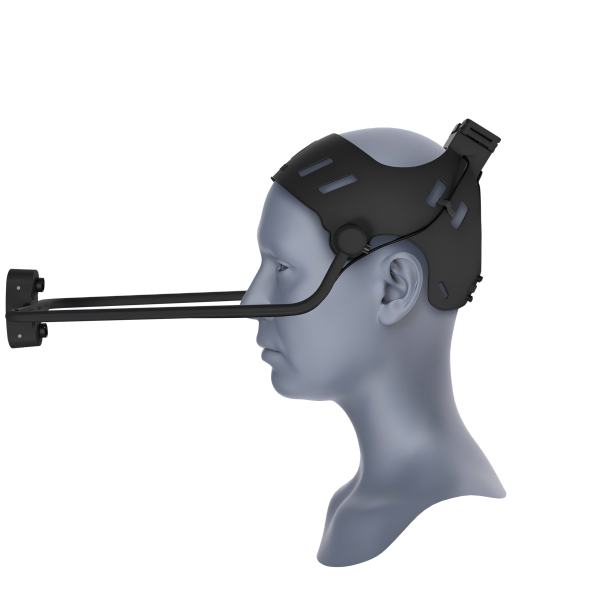

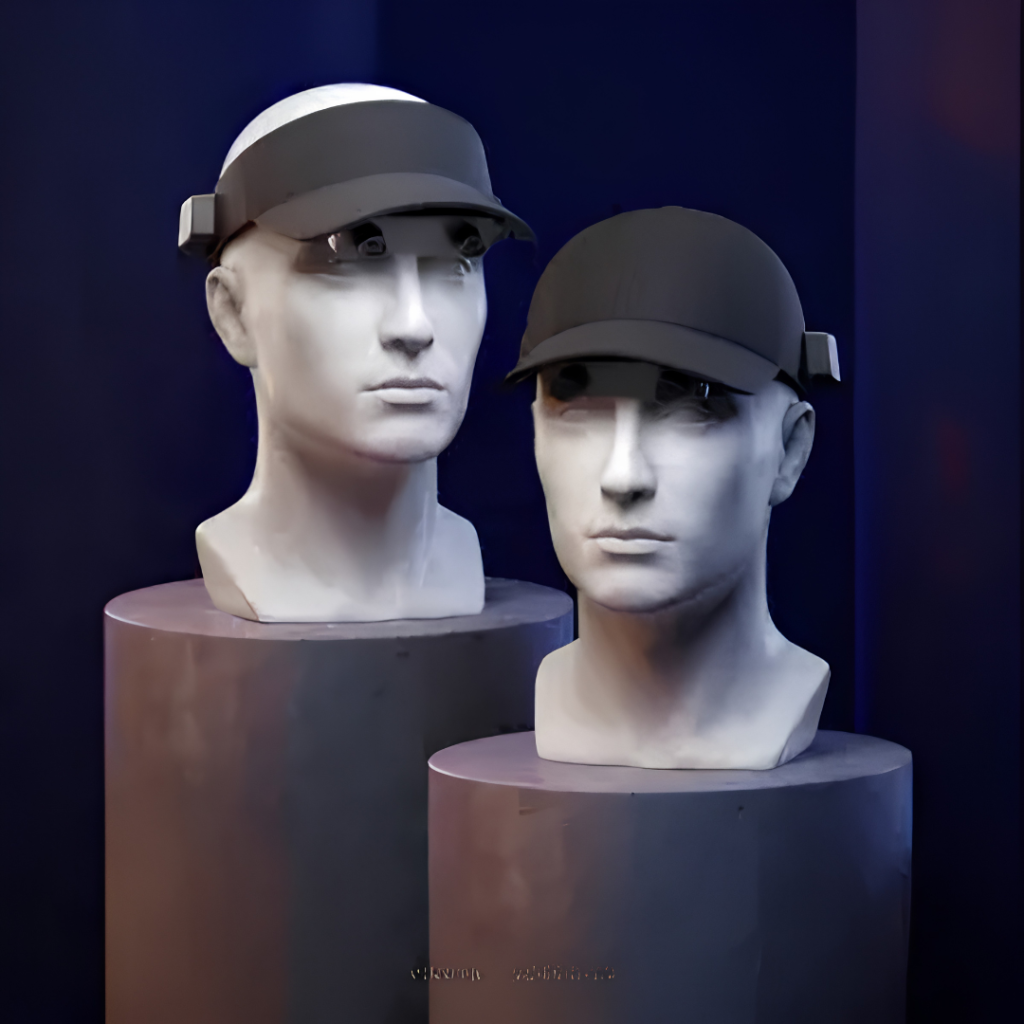

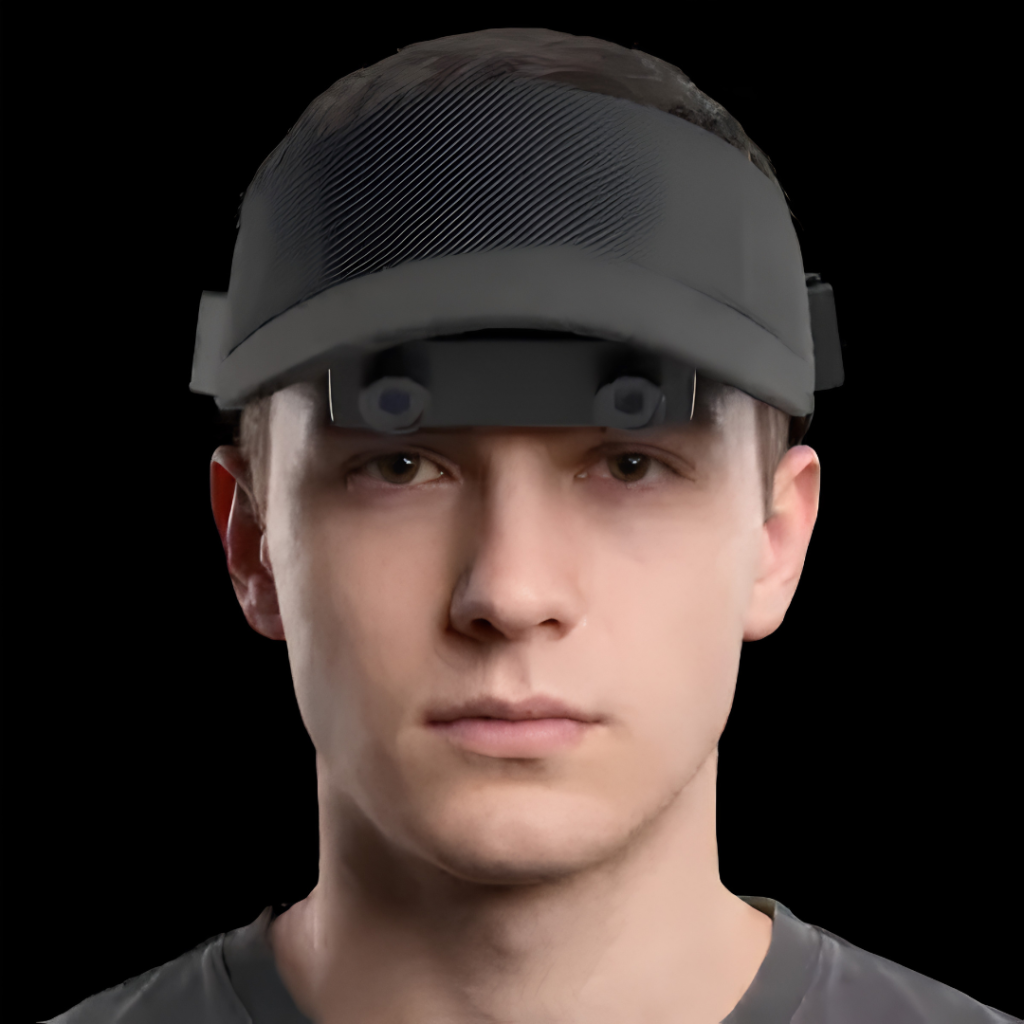

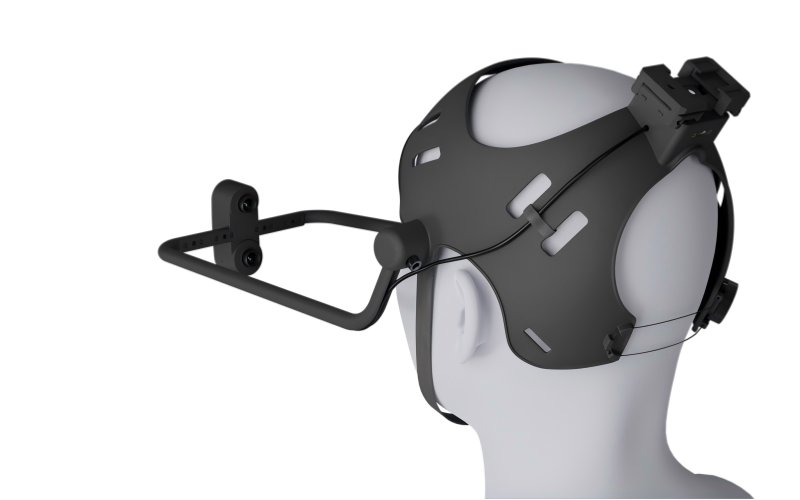

Virdyn VDEgo Egocentric Head Mounted Camera
Unbox first-person data at scale with the Virdyn VDEgo — a lightweight, wearable egocentric camera engineered to bridge human vision and robotic action. Captures synchronized video, IMU, and audio data, available in binocular (VDEgo-C2) and quad-camera (VDEgo-C4) configurations for AI, robotics, and spatial computing.

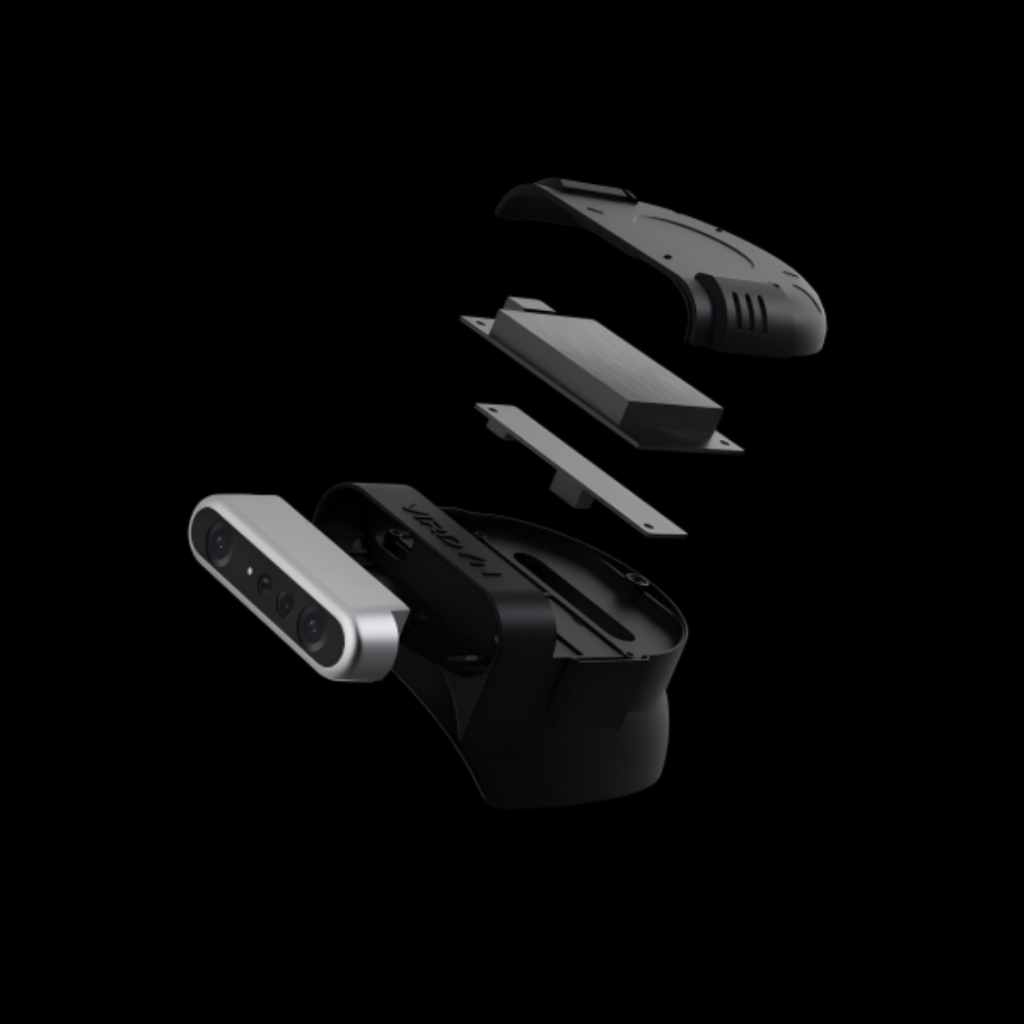

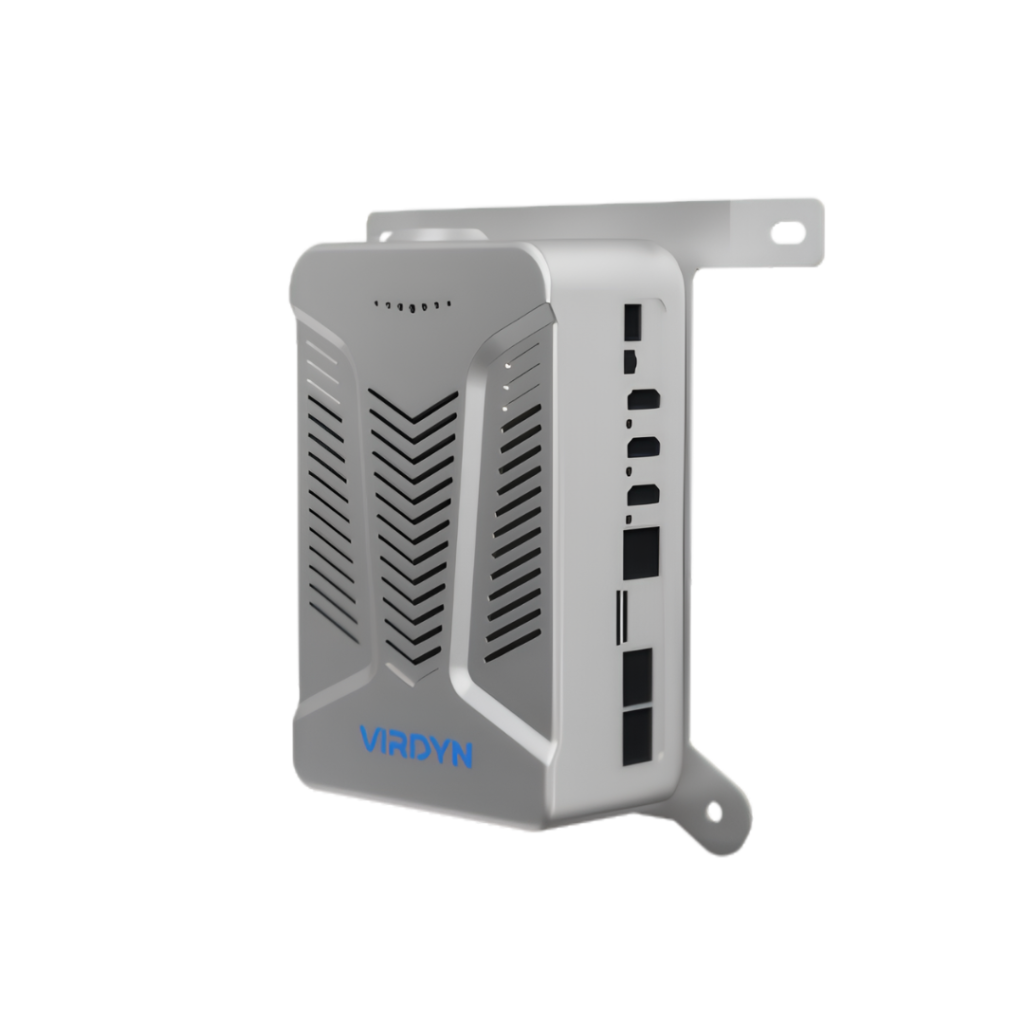

Virdyn Voice & Vision Interaction Development Kit
Unbox unified perception with Virdyn's Intelligent Voice Interaction Development Kit — combining a Smart Voice Engine Backpack and Smart Vision Helmet into one cross brand upgrade for humanoid robots. With built in LLM voice interaction, centimeter level navigation, and IoT linkage, it's built for exhibition halls, service centers, and retail.

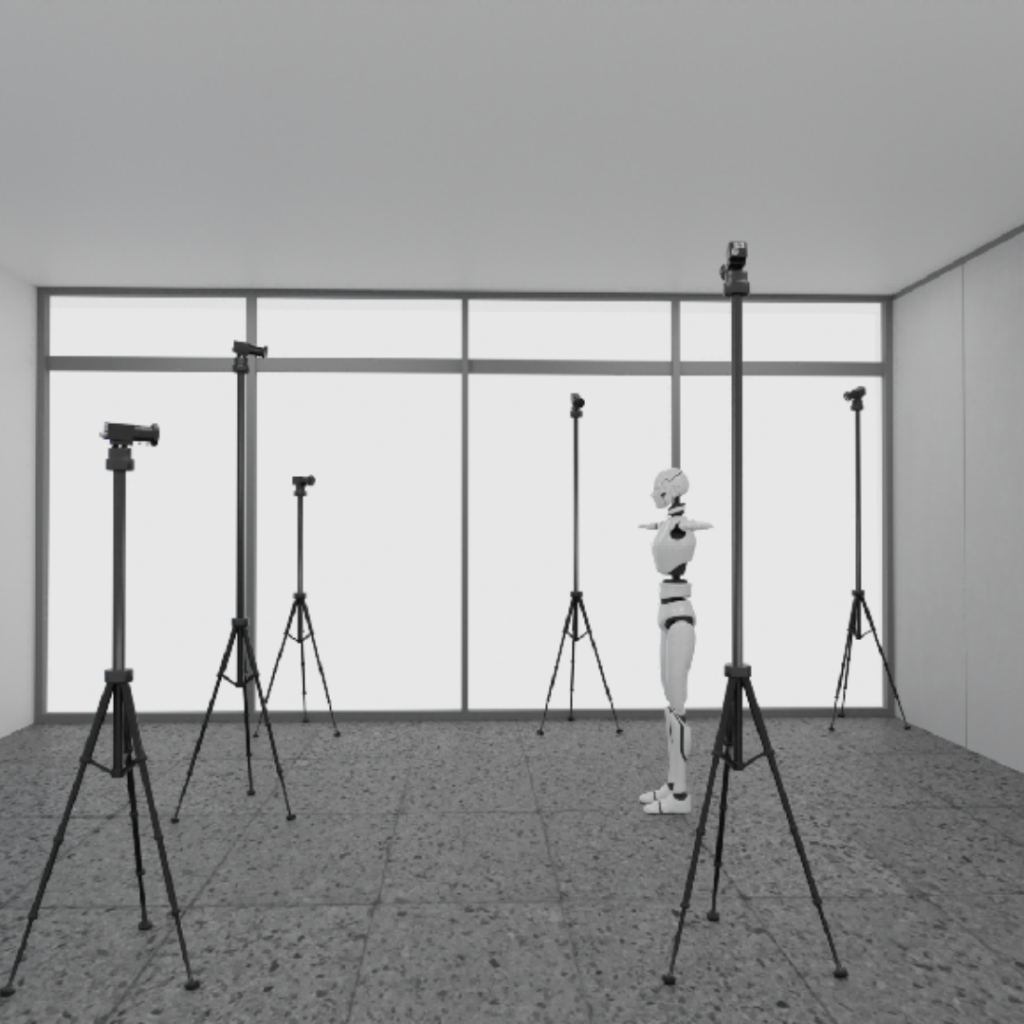

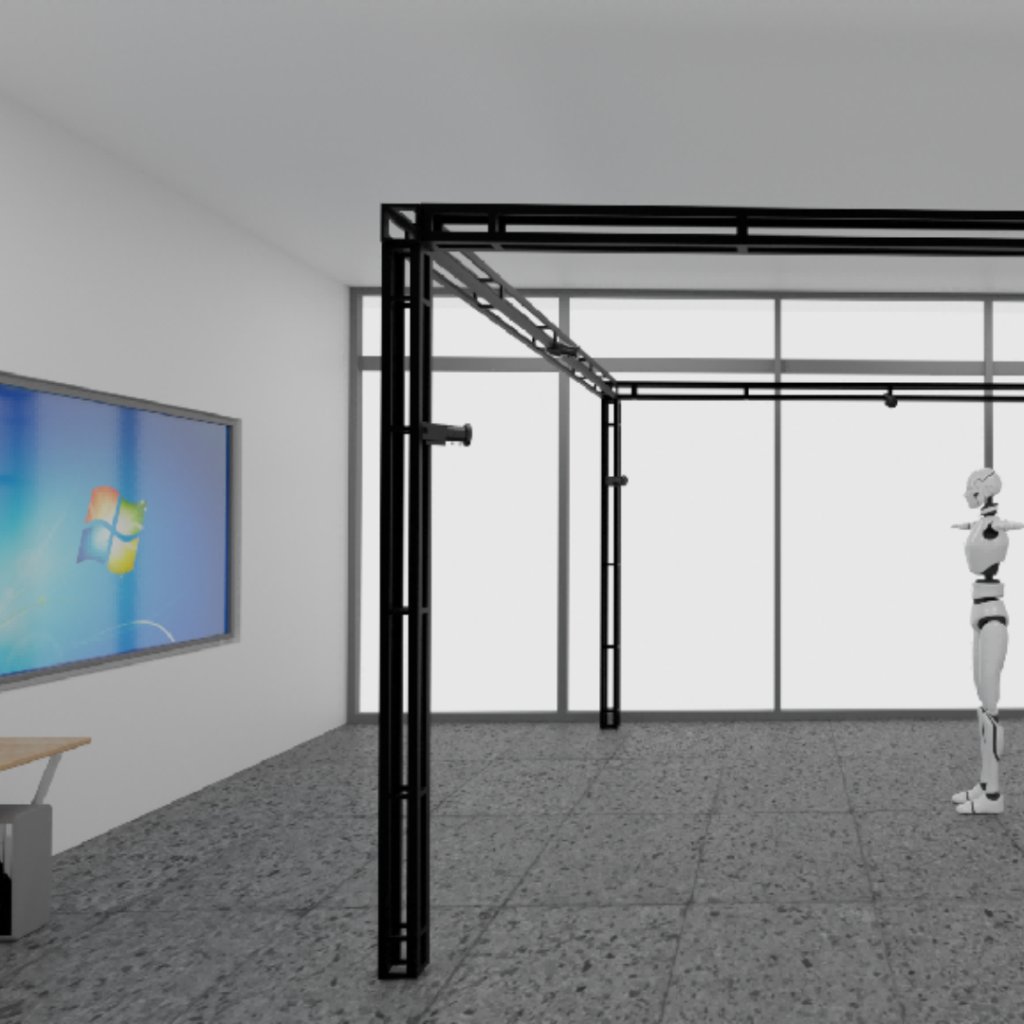

Virdyn YanDong 7 Camera Markerless Motion Capture
