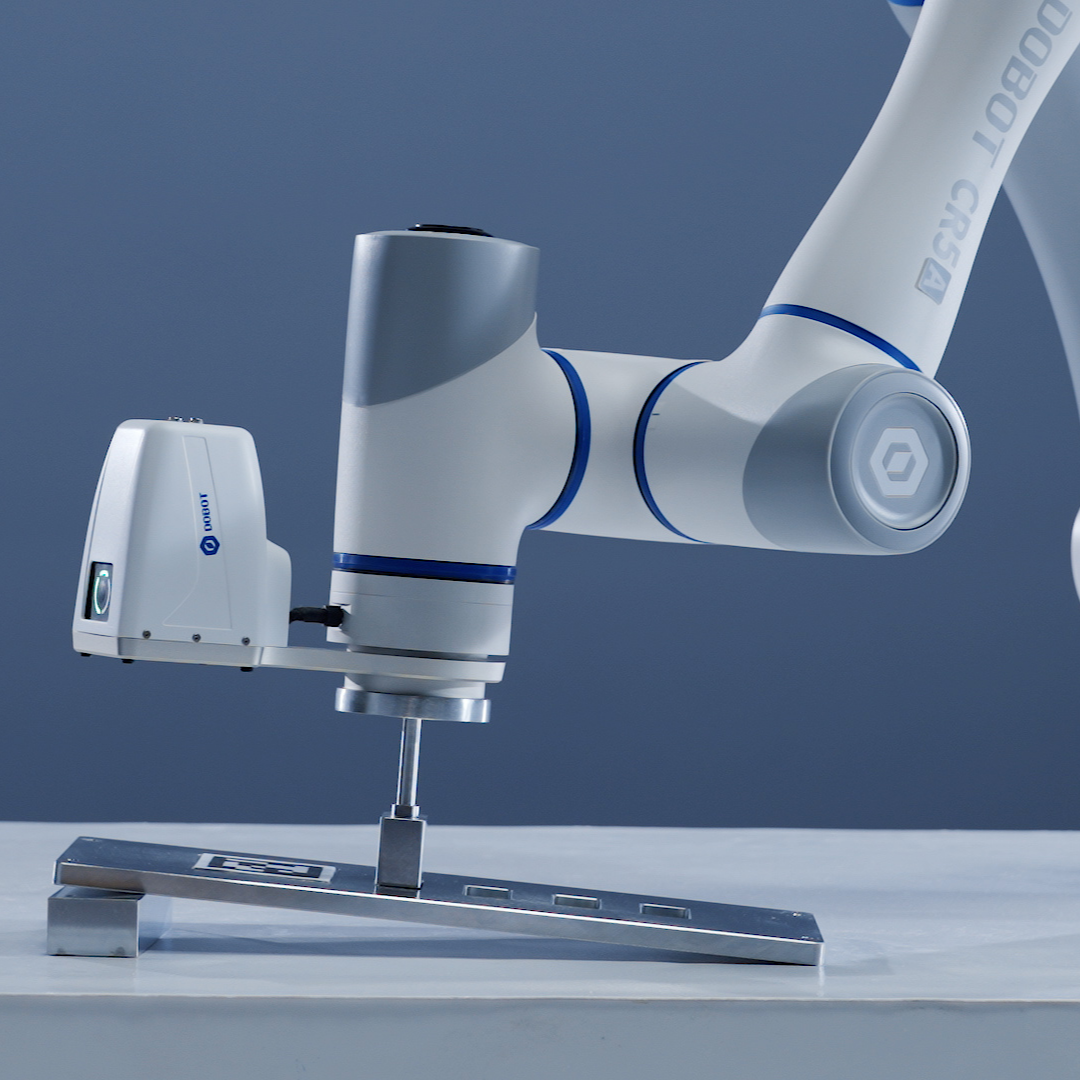

Unbox precise robotic vision with the DOBOT VX500 Smart Camera — a 5-megapixel camera with LED light source and Dobot’s self developed 2.5D spatial compensation technology, achieving ±0.26mm positioning accuracy. Built for slanted surface grabbing, fixed position assembly, and AMMR robot transportation.
Unbox precise robotic vision with the DOBOT VX500 Smart Camera — a 5 megapixel camera and LED light source powered by Dobot’s self-developed 2.5D spatial compensation technology, achieving ±0.26mm positioning accuracy for a wide variety of applications. This includes grabbing slanted surfaces on objects, assembly for fixed positions, AMMR robot transportation, and loading and unloading scenarios. The VX500 Smart Camera works with visualizable operation software, saving development hassle while remaining easy to deploy.
Key Features:
- 2.5D Accurate Positioning – With Dobot’s self developed 2.5D spatial compensation technology, the VX500 accurately identifies a target object’s horizontal and tilt angles with accuracy up to ±0.5mm, allowing robots to capably handle complex scenarios with uneven floors and disorderly objects.
- Multiple Functions in One – Integrates various fault preventing inspection algorithms for tasks such as material positioning, barcode and character identification, width and diameter measurement, gray scale measurement, and more.
- Simple & Easy Deployment – Works seamlessly with DobotStudioPro operation software, allowing solutions to be set up through quick guidance without handling complex developmental procedures. Supports graphical programming that’s easy to familiarize with, increasing solution deployment efficiency.
- Global Shutter CMOS Sensor – Captures crisp, distortion-free images even for moving objects, ensuring reliable data for high speed automation tasks.
- Mechanical Focusing Lens with M12 Mount – Offers a 12.4mm focal length for consistent, precise focus across varying working distances.
- Integrated 14-LED White Light Source – Ensures stable, consistent illumination for reliable image capture regardless of ambient factory lighting conditions
Description
Unbox precise robotic vision with the DOBOT VX500 Smart Camera — a 5 megapixel camera and LED light source powered by Dobot’s self-developed 2.5D spatial compensation technology, achieving ±0.26mm positioning accuracy for a wide variety of applications. This includes grabbing slanted surfaces on objects, assembly for fixed positions, AMMR robot transportation, and loading and unloading scenarios. The VX500 Smart Camera works with visualizable operation software, saving development hassle while remaining easy to deploy.
Key Features:
- 2.5D Accurate Positioning – With Dobot’s self developed 2.5D spatial compensation technology, the VX500 accurately identifies a target object’s horizontal and tilt angles with accuracy up to ±0.5mm, allowing robots to capably handle complex scenarios with uneven floors and disorderly objects.
- Multiple Functions in One – Integrates various fault preventing inspection algorithms for tasks such as material positioning, barcode and character identification, width and diameter measurement, gray scale measurement, and more.
- Simple & Easy Deployment – Works seamlessly with DobotStudioPro operation software, allowing solutions to be set up through quick guidance without handling complex developmental procedures. Supports graphical programming that’s easy to familiarize with, increasing solution deployment efficiency.
- Global Shutter CMOS Sensor – Captures crisp, distortion-free images even for moving objects, ensuring reliable data for high speed automation tasks.
- Mechanical Focusing Lens with M12 Mount – Offers a 12.4mm focal length for consistent, precise focus across varying working distances.
- Integrated 14-LED White Light Source – Ensures stable, consistent illumination for reliable image capture regardless of ambient factory lighting conditions
