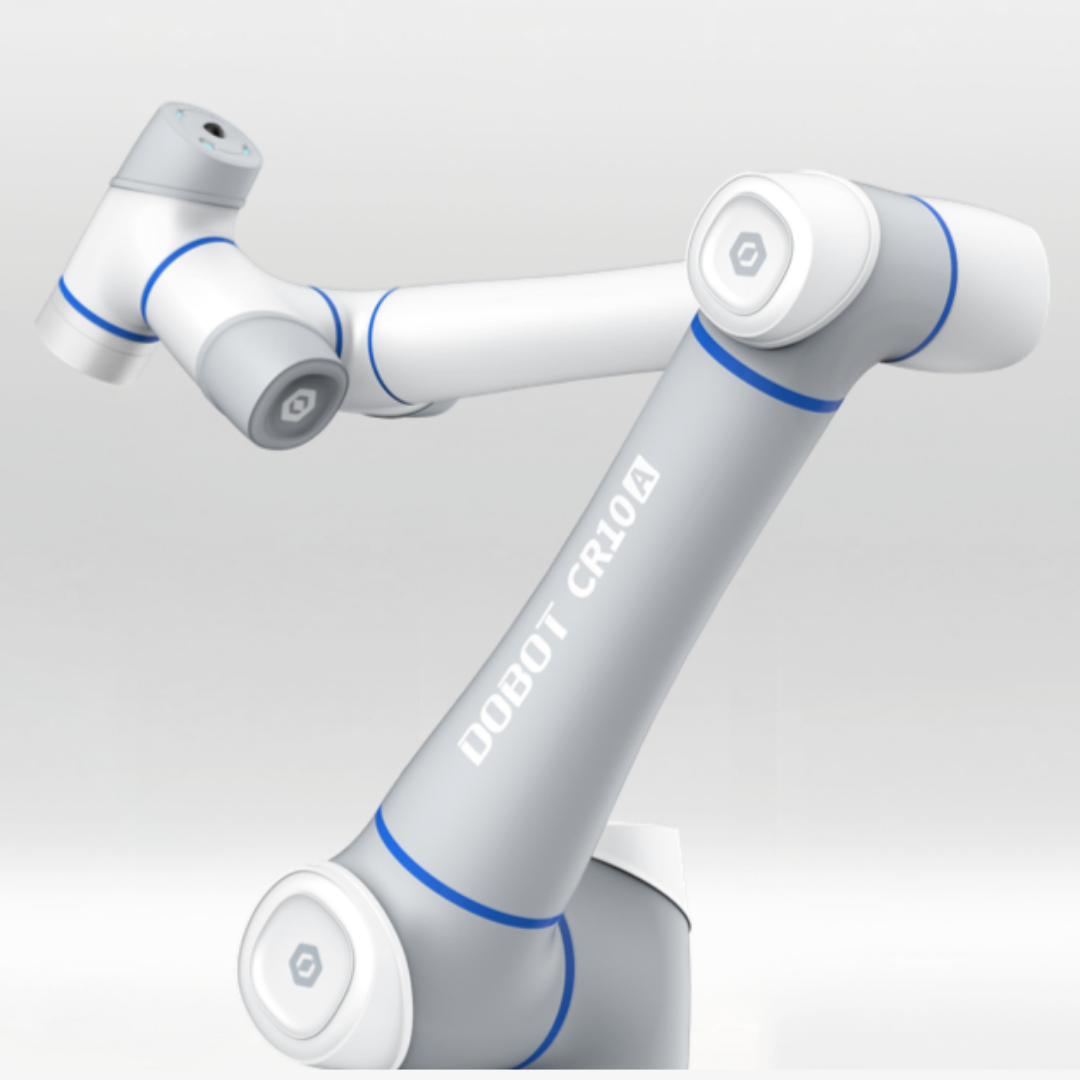

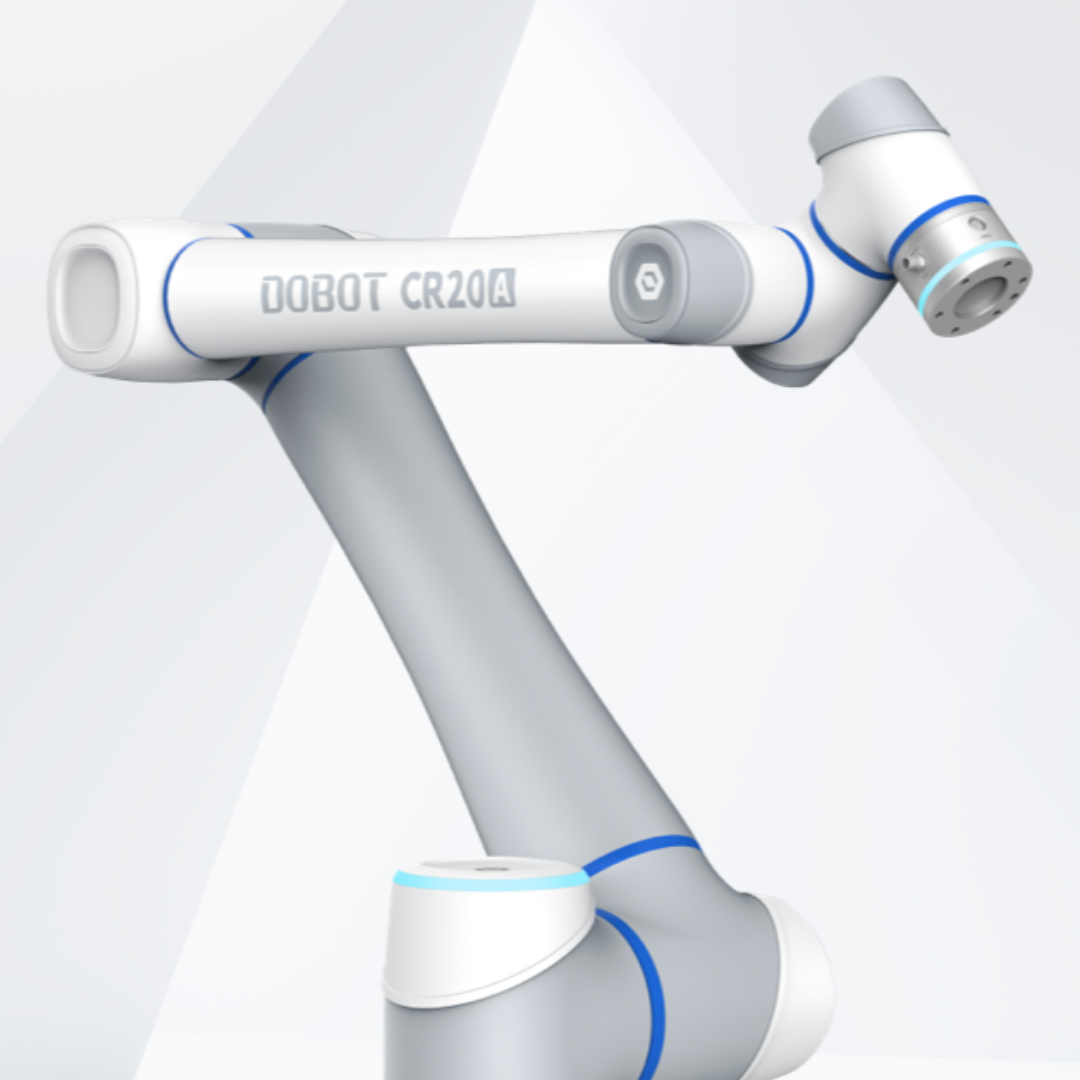

Unbox extreme durability with the DOBOT CRA-IP68 Series — a high protection collaborative robot arm engineered for harsh environments with high dust, humidity, and oil contamination. SGS certified IP68 waterproof, with an internal pneumatic system and 2 m/s maximum linear speed for demanding industrial automation.
Unbox extreme durability with the DOBOT CRA-IP68 Series — a high-protection IP68 collaborative robot arm specifically designed for harsh working environments with high dust, high humidity, and high oil contamination. The product retains the excellent performance, functionality, and ease of use typical of the CRA series, while its enhanced protection level further improves adaptability and reliability in the most challenging environments.
Key Features:
- Full IP68 Waterproof Design – Certified by SGS under IEC 60529, the robot passed a rigorous 72 hour test to meet IP68 waterproof standards, ensuring reliable operation even in water mist and high humidity conditions.
- Anti-Dust Design – Built to handle high dust environments, making this collaborative robot arm well suited for applications like cutting and grinding.
- Oil Resistant, Perfect for Cutting Fluid – All exterior plastic components are made from fluororubber, known for exceptional chemical stability and strong corrosion resistance against cutting fluids and industrial oils.
- Internal Pneumatic System – Enables internal pressurization, ensuring positive pressure that enhances the cobot’s sealing capabilities against contaminants.

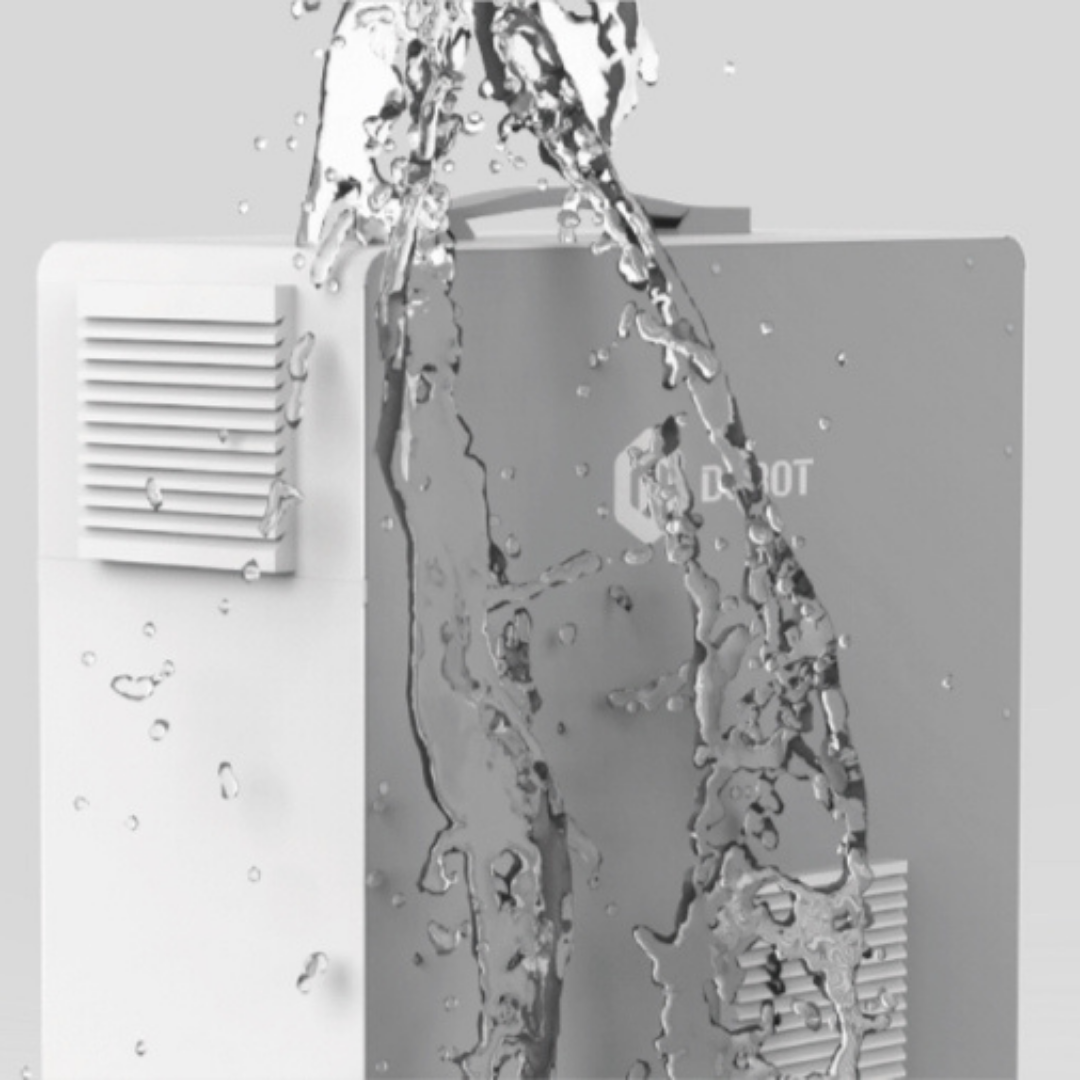

- IP54 Waterproof Control Cabinet – To further enhance safety and adaptability in extreme conditions, the control cabinet adopts an IP54 waterproof design, making the CRA-IP68 series fully capable of handling harsh tasks from end to end.
- High-Speed, High-Precision Performance – Delivers a maximum linear speed of 2 m/s, positioning accuracy under 0.4mm, and repeatability precision up to ±0.02mm, matching the performance standards of the standard CRA series.
- Full CRA-Series Ease of Use – Supports drag to teach control, graphical programming, and code based programming no professional programming background required, making automation accessible in even the harshest facilities.
Three Models to Fit Your Application:
- CR5AP – 5 kg maximum payload, 900 mm working radius, IP68 rated.
- CR10AP – 10 kg maximum payload, 1,300 mm working radius, IP68 rated.
- CR20AP – 20 kg maximum payload, 1,700 mm working radius, IP68 rated
Description
Unbox extreme durability with the DOBOT CRA-IP68 Series — a high-protection IP68 collaborative robot arm specifically designed for harsh working environments with high dust, high humidity, and high oil contamination. The product retains the excellent performance, functionality, and ease of use typical of the CRA series, while its enhanced protection level further improves adaptability and reliability in the most challenging environments.
Key Features:
- Full IP68 Waterproof Design – Certified by SGS under IEC 60529, the robot passed a rigorous 72 hour test to meet IP68 waterproof standards, ensuring reliable operation even in water mist and high humidity conditions.
- Anti-Dust Design – Built to handle high dust environments, making this collaborative robot arm well suited for applications like cutting and grinding.
- Oil Resistant, Perfect for Cutting Fluid – All exterior plastic components are made from fluororubber, known for exceptional chemical stability and strong corrosion resistance against cutting fluids and industrial oils.
- Internal Pneumatic System – Enables internal pressurization, ensuring positive pressure that enhances the cobot’s sealing capabilities against contaminants.
- IP54 Waterproof Control Cabinet – To further enhance safety and adaptability in extreme conditions, the control cabinet adopts an IP54 waterproof design, making the CRA-IP68 series fully capable of handling harsh tasks from end to end.
- High-Speed, High-Precision Performance – Delivers a maximum linear speed of 2 m/s, positioning accuracy under 0.4mm, and repeatability precision up to ±0.02mm, matching the performance standards of the standard CRA series.
- Full CRA-Series Ease of Use – Supports drag to teach control, graphical programming, and code based programming no professional programming background required, making automation accessible in even the harshest facilities.
Three Models to Fit Your Application:
- CR5AP – 5 kg maximum payload, 900 mm working radius, IP68 rated.
- CR10AP – 10 kg maximum payload, 1,300 mm working radius, IP68 rated.
- CR20AP – 20 kg maximum payload, 1,700 mm working radius, IP68 rated
